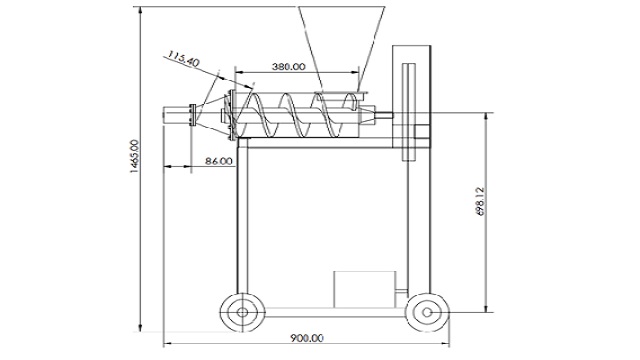

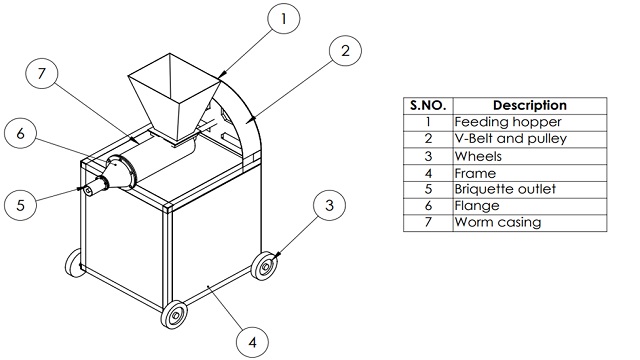

Dung Log Making Machine is a screw press type machine, it assists with transforming the crude cow dung into tube-shaped or square empty logs (likewise called cow compost wood logs). The size of logs is around 70 mm in measurement and the length of logs can be physically changed by picking the right size of log gathering pipe. The extra wide feed opening in-feed chamber is accommodated inconvenience-free activity. The best quality working electric board is furnished for simple activity with forward and turn around capability.
PROCESS OF DUNG LOG MAKING MACHINE
As a matter of some importance, 2-3 days-old Cow Dung with a particular dampness range of around 40% is taken care of physically in an in-feed container of the cow dung log machine. Further, the moving screw transport gathers the cow waste and pushes it towards the kick of the bucket which transforms the cow compost into pass-on molded logs. The completed logs are fit to be gathered at the release end of the machine. Further, the completed logs should be dried out in sun drying for 2-3 days before they can be utilized.
USES OF DUNG LOG MAKING MACHINE
- Dung Log Making Machine can be utilized for Fuel and Compost.
- Works on Taking care of, Stockpiling, and Transportation issues monetarily.
- Decreases wastage or loss of material.
- Densified logs give better C.V. (Calorific Value) in contrast with patties.
- Long and little logs can be removed according to reason.
- Briquettes and blocks are a viable approach to lessen the risk of blast and fire of quick combustible material.
- It is effectively accessible, limitless, and minimal expense fuel
- Patties are made by blending mud + waste, so debris content is more in patties than logs as these can be made of unadulterated compost.
SPECIFICATION OF DUNG LOG MAKING MACHINE
| General | ||
| Make | : | Sidhharth |
| Model | : | SE-DL5 |
| Type | : | Electricity/ Power Operated |
| Total weight of the machine, kg | : | 202 |
| Commodity Tested | : | Row dung |
| Power Unit | ||
| Type of prime mover | : | Electric motor |
| Motor power | : | 5hp;Three phase |
| Type of drive | : | V-belt pulley |
| Diameter of motor pulley (Φ), mm | : | 76 |
| Diameter of main pulley (Φ), mm | : | 457 |
| No. and type belts | : | 02; B86 |
| Squeezing unit | ||
| Total length of log making unit, mm | : | 495 |
| Size of worm casing (L × D), mm | : | 335 x 230 |
| Size of worm shaft (L × D), mm | : | 845 × 45 |
| Outer diameter of the worm/screw, mm | : | 192 |
| Axial pitch of worm/screw, mm | : | 120 |
| Compression ratio | : | 2.98 |
| Feeding system | ||
| Shape of feeding hopper | : | Conical |
| Size of the hopper (L × W × H), mm | : | 468 × 412 × 370 |
| Rated input capacity of machine raw dung(kg/h) | : | 1032.20 |
